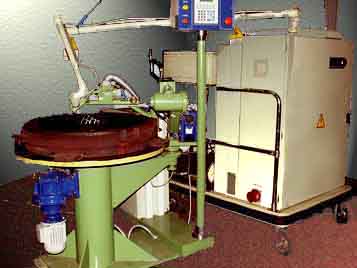

Plant for cleaning press-molds by laser radiation of model Luch-4 with attachment of model USL-800
The plant is intended for cleaning press-molds with laser radiation.
Technical data:
| Time of press-mold cleaning |
30-60 | min |
| Total installed power |
6,5 | kW |
| Overall dimensions |
The plant of model Luch-4 |
1400È950È1400 | mm |
| The attachment of model USL-800 |
1160È1150È1540 | mm |
| Weight |
750 | kg |
The plant includes:
- laser radiation source,
- air micro-conditioning system,
- laser radiation transmission system to press-mold,
- suction system of gas and dust formations, formed during the process of cleaning,
- carriage for transportation of the plant.
The plant provides:
high quality cleaning of all the press-molds typical sizes with pattern of various complexity without press-mold surface damages.
