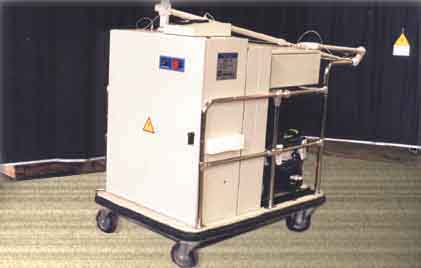

Cure moulds laser cleaning machine Luch-4
Index: NACV.6084
Is designed for cure moulds cleaning by means of laser irradiation
Technical data:
| Cleaning continuance |
50-120 | min |
| Irradiation capacity in pulse |
110 | MW |
| Installed power |
4,5 | kW |
| Overall dimensions |
1400È950È1400 | mm |
| Weight |
285 | kg |
Machine consists of:
- laser projector,
- air micro-conditioning system,
- laser beam transmitting system,
- vapor and dust emission removal system,
- handling car for machine transportation.
Provides all range, whatever tread pattern difficulty cure moulds high–quality cleaning without any detriment to mould surface.
The machine allows clean any surfaces off old paint, dirt and rust, to clean articles of marble, tile etc.
