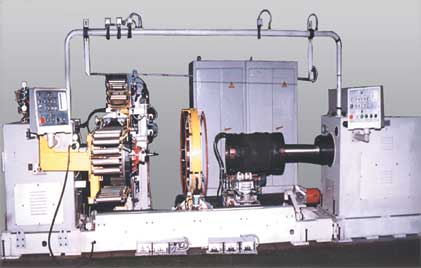

Tire building machine of model ASPR 2-410-700
Index: NACV.0042
The unit is intended for the stage of building radial passenger and light truck tires with rim diameter 13"-16.
Technical data:
| Fitted diameter of shaping drum flanges |
max | 435 | mm |
| min | 325 | mm |
| Distance between flanges |
max | 470 | mm |
| min | 190 | mm |
| Productivity for tire with 2 plies breaker |
23 | pcs./h |
| Overall dimensions |
6200È4490È2260 | mm |
| Weight |
6500 | kg |
The unit includes:
- two position machine with breaker and shaping drums,
- breaker-tread band transfer,
- breaker and textile ply servicer,
- tread servicer,
- stitching device.
The unit provides:
- automatic carcass centering on the shaping drum,
- accurate alignment of breaker-tread band and carcass for shaping (±1,0 mm).
