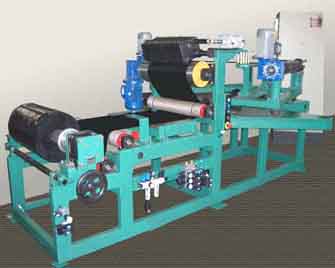

Rubber sheet cutting unit of model ARP-500
Index: NACV.4105
The unit provides the lengthwise cutting out a rubber sheet to a set number of strips of desired width and their rolling on the individual removable bobbins.
Technical data:
| Speed of coiling |
5-20 | m/min |
| Maximum dimensions of the cut material |
width | 500 | mm |
| thickness (within the limits of) |
0,5-1,0 | mm |
| roll diameter | 400 | mm |
| Width of the polyethylene liner |
550 | mm |
| Disposition symmetry tolerance of the material in liner |
±5 | mm |
| Cut rubber strips width |
20-50 | mm |
| Precision of the cutting and coiling |
±1,0 | mm |
| Maximum diameter of bobbin with the coiled cut material |
400 | mm |
| Network parameters |
frequency |
50±1 | Hz |
| voltage |
220+22/380+38 | V |
| Air pressure in pneumatic system |
(0,63-0,8)±0,06 | MPa |
| Air pollution class according to GïST 17433-80 |
8 | |
| Total installed power of the electrical motors of the unit |
2,2 | kW |
| Overall dimensions |
3100È2200È1550 | mm |
| Weight |
1100 | kg |
The unit provides:
making bead strips and inner liners for metal cord breaker edges isolation.
Rubber sheet cutting and following coiling of strips are realized simultaneously together with polyethylene liner.
The control system of the unit is performed on the basis of the controller of firm "Festo", electro-mechanical drives-on the basis of the frequency converters of firm "Mitsubishi".
