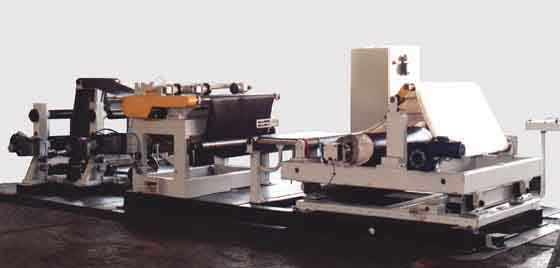

Rubber-coated cord sheet cutting unit of model ARP-1100
Index: NACV.4084
The unit for the lengthwise cutting continuous rubber-coated cord sheet, rolled in liner, to strips and their coiling in transport carriages.
Technical data:
| Working speed of coiling |
5-30 | m/min |
| Maximum diameter of bobbin with coiled cut material |
800 | mm |
| Maximum dimensions of cut material |
width | 1040 | mm |
| thickness | 1,3 | mm |
| roll diameter together with liner | 900 | mm |
| Network parameters |
voltage | 220/380 | V |
| frequency | 50 | Hz |
| Air pressure in pneumatic system |
0,6-0,8 | MPa |
| Total installed power of unit electric motors |
3,7 | kW |
| Overall dimensions |
6730È2335È1560 | mm |
| Weight |
3600 | kg |
The unit is equipped with centering mechanism of cord sheet before its feeding in cutting device.
Cut strips coiling unit consists of 2 coiling posts in which the transport carriages compatible with servicers of tire building machine are set.
The control system of the unit is performed on the basis of the controller of firm "Festo", electro-mechanical drives-on the basis of the frequency converters of firm "Mitsubishi".
