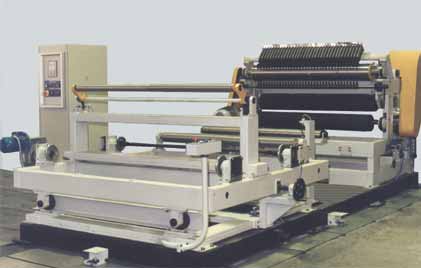

Rubber-coated cord sheet cutting unit of model ARP-1400
Index: NACV.4078
The unit is provides the lengthwise cutting continuous rubber or rubberized cord sheet, rolled in liner, to strips of width from 40 mm up to 200 mm for textile breaker ply and rubber bands for rubberized cord breaker edges isolation and their coiling on removable bobbins.
Technical data:
| Working speed of coiling |
5-30 | m/min |
| Maximum diameter of the bobbin with coiled cut material |
800 | mm |
| Maximum dimensions of cut material |
width | 1400±20 | mm |
| thickness | 1,2 | mm |
| roll diameter together with liner | 900 | mm |
| Air pressure in pneumatic system |
0,6±0,08 | MPa |
| Total installed power of unit electric motors |
3,7 | kW |
| Overall dimensions |
5050È2800È1860 | mm |
| Weight |
3800 | kg |
The unit provides:
textile breaker ply producing for a full range of radial passenger and light truck tires.
Unit control system is performed on the basis of controller of firm "Festo", electro-mechanical drives- on the basis of frequency converters of firm "Mitsubishi".
