Tire bead ring units of model AKD
The units are designed for producing bead rings of brass-plated rubberized wire for passenger, light truck, agricultural, large tires.

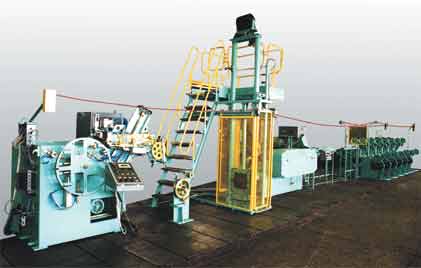

Tire bead ring units of model AKD
Technical data:
Designation AKD 80-1300 AKD 2/320-620 AKD 600-1300 AKD 80-1300
Index 312.101 312.072 NACV.4038 NACV.4062
Productivity, pcs./h 280
for tire ring 260-508,
7 revolutions		 330
for tire ring 260-508,
9 revolutions		 85
for tire ring
51",
9 revolutions		 280
for tire ring 260-508,
7 revolutions
Internal diameter of ring, mm 200-1300 320-620 600-1300 200-1300
Number of ring wire loops, pcs. 2-20 3-15 2-20 2-20
Number of loop wires, pcs. 4-10 4-10 4-18 4-12
Wire diameter, mm 1,0 1,0 1,0 1,0; 0,9
Wire drawing speed m/min 40-100 40-100 40-100 40-100
Number of bead rings, wound simultaneously, pcs. 1 2 1 1
Total consumed power of installed electric motors, kW 48 100,7 76,3 58,7
Overall dimensions, mm 16000È3200È3750 18800È4000È3750 18200È3700È3750 13650È3200È3750
Weight, kg 10550 11800 12000 8800
The unit includes:
The units provides:
automatic process of bead rings making for tires of various typical sizes.

The units are completed with one or two rolling machines and tamplets of various typical sizes.
