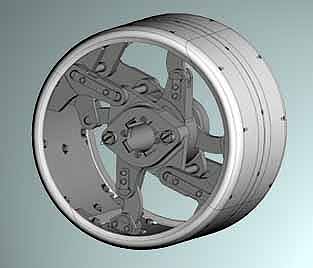

Four-sector drums for tires building machines

Four-sector drums for tires building machines

Technical data:

The rim diameter of tire, inch	Drum diameter, mm	Drum width, mm	Diameter of the folded drum, mm	Fitted diameter of hub, mm	Weight, kg	Type of the building machine, that includes the drum	Note
13	362	280-330 330-380	322	50, 51*	70	SPP 1-470-720 (SPP-66) SPP 3-460-800	*for A-70
13	398	270-330 330-425	324	50	110	SPP 1-470-720 (SPP-66)
14	387	300-360 360-400	345	50, 51*	100	SPP 1-470-720 (SPP-66) SPP 3-460-800	*for A-70
14	418	285-375 375-425	343	50	120	SPP 1-470-720 (SPP-66) SPP 3-460-800
15	413	330-385 385-440	375	50, 51*	115	SPP 1-470-720 (SPP-66) SPP 3-460-800	*for A-70
15	440	320-410 410-510	375	50	130	SPP 3-460-800
16	440	320-410 410-510	375	50, 65, 70*	130	SPP 3-460-800 SPD 2-660-900M	for SPP 3-460-800 *for SPD 2-660-900M
16	460	310-340 440-460	390	50, 70*	140	SPP 3-460-800 SPD 2-660-900M	*for SPD 2-660-900M
17,5	520	340-390	430	70	150	SPD 2-660-900M
20	575	450-500	488	70	170	SPD 2-660-900M

The drum design provides:

sectors locking in working position, that gives higher tangential and axial rigidity of drum during tires building;
clearances on the sectors joints, not more than 0,3 mm;
radial run-out and end play, not more than 0,3 mm;
higher discreteness of drums width.

The drums are equipped with high reliability lock pins, that operate simultaneously with locating elements of sectors.
